Design & Architecture

Sleek Form Factor

Occupying only a 2 RU space and managing from 8 (PHOTON) to 16 (XENON) HD outputs, our new servers will still deliver the content you need while having a much smaller footprint than their predecessors.

Standardized yet Configurable Solution

PHOTON, XENON and ALBION will from now on take advantage of the DELL EMC architecture. Moving to this new standardized design will greatly simplify maintenance and support operations. Even if our servers operate from a unified design, they will still feature customization options that will allow you to expand storage, change the quantity of video outputs or add media acquisition cards.

aboutproduct

Specifications

Connectivity Front

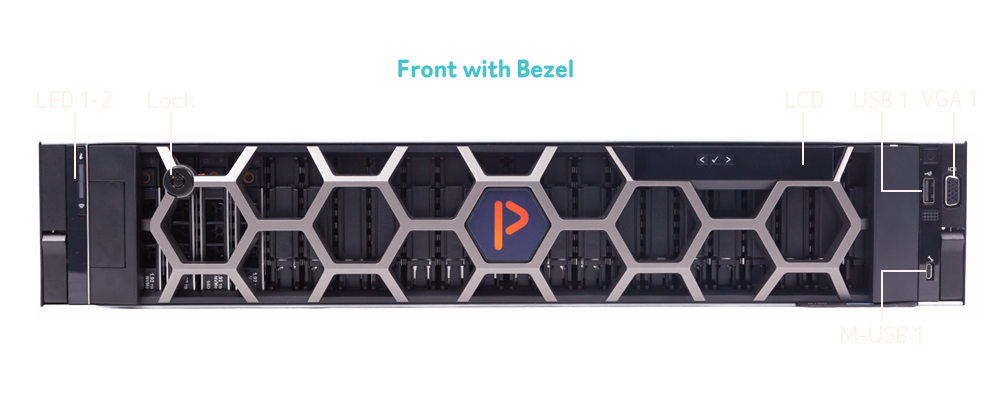

BEZEL
Lock

Bezel with keyed lock to prevent its removal or unauthorized access to SSD.

LCD

LCD Display & control pannel for easy monitoring of host name, IP address, power consumption and thermal output.

FRONT
LED 1-2

Status LED indicators. For more information see the Status LED indicators section in the server manual.

VGA 1

1 x DB-15 – VGA – Disabled post boot. Used for bios access if needed.

PWR

Power button – Indicates if the system is turned on or off.

Rail Kit

ReadyRails II™ sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes.

M-USB1

iDRAC Direct port – micro USB 2.0 – disabled/non-operable

USB 1

1 x USB 2.0

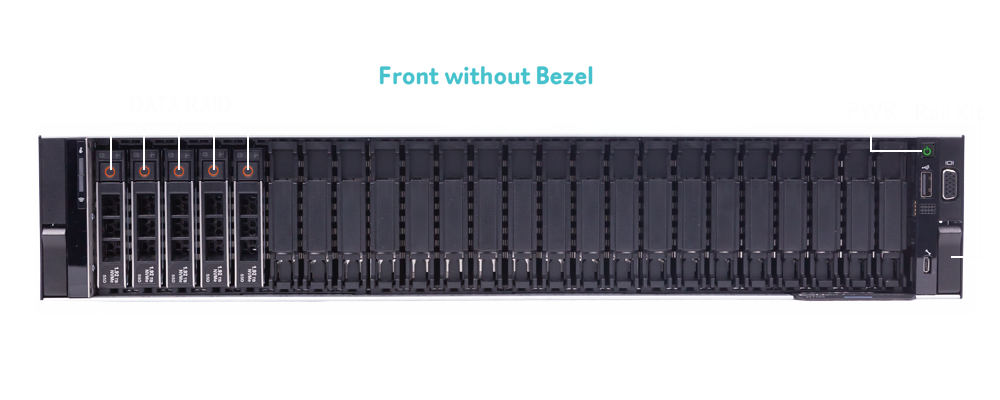

RAID Array
DATA RAID

5 x Enterprise NVMe standard configuration (6.98 TB Storage)
Up to 8 x NVME SSD
Up to 100.15 TB of usable Raid-5 space (with 15.36 TB optional drives).

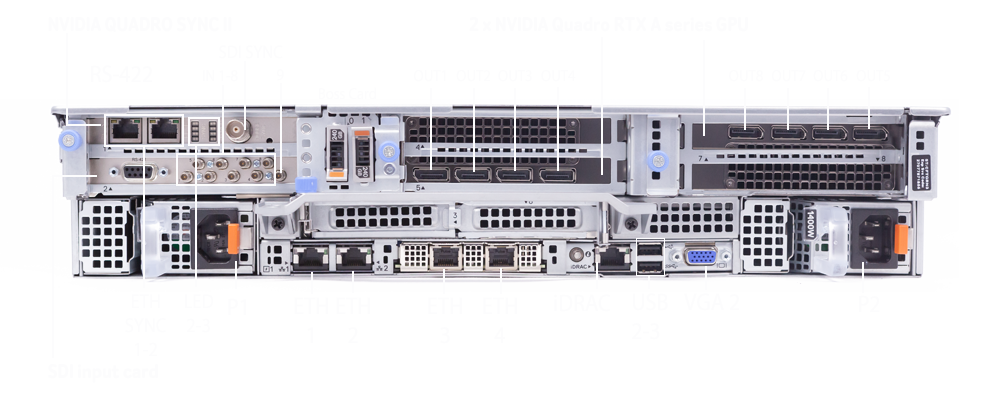

Connectivity Back

NVIDIA Quadro RTX GPU

(available options: RTXA5000 (standard) or RTXA6000)

OUT 1-8

8 x Display Port 1.4a – Can be converted to HDMI2.0 or DVI-D using passive/active adapters Use only with compliant active adapters for DVI and HDMI 2.0 when resolution is above 1080p60.
All outputs on a server MUST be configured at the same resolution, frequency and timings.

SDI input card

Up to 8 x 3G-SDI or up to 4 x 12G-SDI

RS-422

1 x RS-422 port – disabled/non-operable

IN 1-8

8 x Din 1.0/2.3 (8x 3G-SDI) support up to 1080p60. Connectors can be linked for quad-link 4K support up to 4096x2160p60. As illustrated in this document. Other options are supported.

9

Reference – Non-operable

Motherboard
BOSS CARD

OS – RAID 1 (mirror)
2 x NVME M.2

iDrac

1 x RJ-45 iDRAC (Integrated Dell Remote Access Controller) for remote support & configuration of BIOS or RAIDs

VGA 2

1 x DB-15 – VGA – Disabled post boot. Used for bios access if needed

ETH 1-2

LOM (Lan on Motherboard) 2 x 1Gbps

ETH 3-4

2 x RJ45 10Gpbs (standard)
SFP NIC options available
Other configurations available

SERIAL 1

1 x Serial port – disabled/non-operable

USB 2

USB 2.0 compliant

USB 3

USB 3.0 compliant

P1-P2

2 x Quick Swap Redondant 1400W PSU – IEC C13

NVIDIA QUADRO SYNC II

(optional)

ETH Sync 1-2

2 x RJ-45 multi-server output synchronisation (frame-lock). Only used when SDI Sync is not available.

SDI SYNC

1 x BNC genlock signal from house system. Blackburst and Tri-Level Sync supported.

LED 2-3

Status LEDs. For more information see the Status LED indicators section in the Quadro Sync II manual.

Outputs

(license + hardware options)

4 x 4K model (8 x 2K || 6 x 3K) – 2 x GPU
2 x 4K model (4 x 2K || 4 x 3K) – 1 x GPU

2K includes all resolution horizontally <= 2048
3K includes all resolution horizontally <= 3072
4K includes all resolution horizontally <= 4096

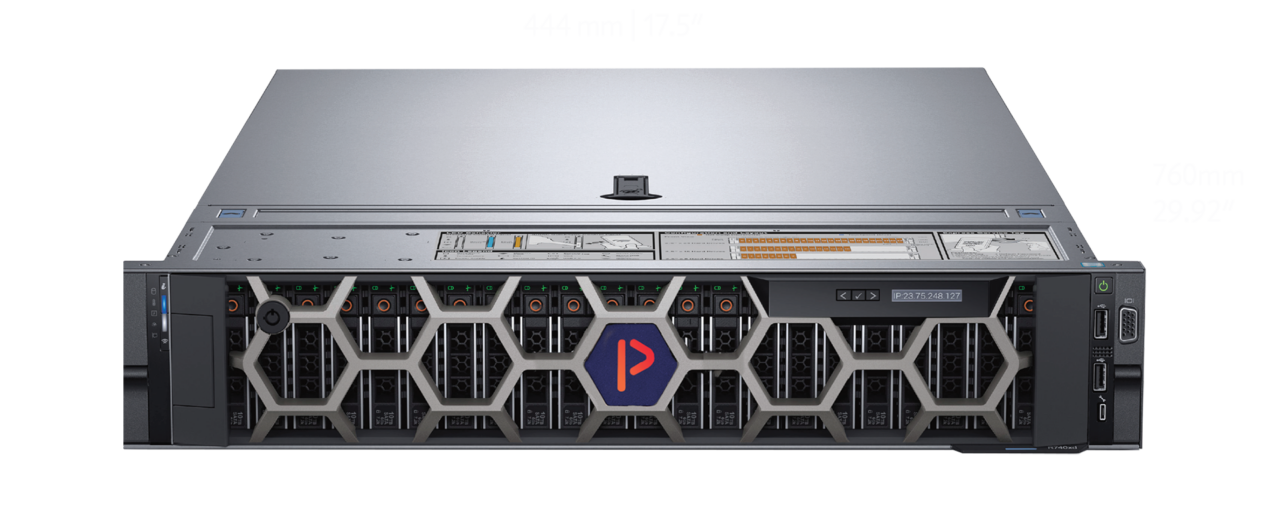

Dimensions

Packed Dimensions

W 670mm | 26.4″
H 320mm | 12.6″

D 960mm | 37.8″

Weight
Server Weight

25 kg | 55.1 lbs

Packed Weight

32 kg | 70.5 lbs

In the box

· The server & its bezel
· ReadyRails II™ sliding rail

· 2 x 5-15P to C13 power cables
· 8 x DIN 1.0/2.3 TO BNC male cables (only with the Corvid 88)

Electrical & Operating Requirements
Line voltage

100–240V AC (auto switching)

Frequency

50Hz to 60Hz, single phase

Typical electric consumption in show operation

1000W AVG (with configuration as shown in the picture)

Maximum electric consumption

2800W

Operating temperature

10° to 35° C (50° to 95° F)

Relative humidity

10% to 90% noncondensing

Heat output (show operation avg)

3200 BTU/Hr

Maximum heat output

8600 BTU/Hr

Server Hardware
CPU

Dual Intel® Xeon® Silver 2.8Ghz

GPU

NVIDIA RTXA5000 Standard

Operating System

Windows Server 2019

Memory

128GB DDR4 RAM

Audio

Optional ASIO USB sound card / Dante
